Beschreibung
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don’t worry, you’ll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Wir bitten um Verständnis, dass einige Teile und Komponenten eventuellen kurzfristigen Änderungen des Herstellers ausgesetzt sind aufgrund des Materialengpasses. |

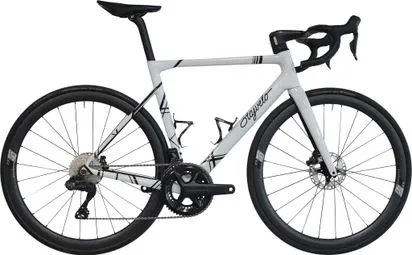

Das Stajvelo Beau Rivage ist ein Rennrad der Spitzenklasse.
Sein T1100 Carbonrahmen und die Shimno Ultegra Di2 Komponenten helfen Ihnen, Ihre Ziele zu erreichen.
Hauptmerkmale:
- Rahmen, Gabel und Sattelstütze aus Carbon.
- Shimano Ultegra Di2 2×12-Gang-Antriebssystem.
- Shimano Ultegra hydraulische Scheibenbremsen.
Eigenschaften:
| Rahmen | Carbon : UD-T1100 Carbon |
| Gabel | Karbon: UD-T1100 Karbon |
| Schaltungen | Shimano Ultegra Di2, 2×12-fach |
| Umwerfer | Shimano Ultegra Di2 |
| Schaltwerk | Shimano Ultegra Di2, 12-fach |
| Kassette | Shimano Ultegra, 11-34Z |
| Kette | Shimano |
| Kurbelgarnitur | Shimano Ultegra, 52-36Z |
| Bremsen | Shimano Ultegra, Hydr. Scheibenbremse, /mm Shimano Rotoren |
| Laufradsatz | Vision SC 40mm, HG Nabenschaltung |
| Bereifung | Hutchinson Fusion 5 Perf, 700×28 mm |
| Lenker | Vision Metron 5D |
| Vorbau | — |
| Sattel | Fizik Vento Argo R5 |
| Sattelstütze | Carbon |
| Gewicht | — |
| Farbe | Pur Weiß |
Geometrien:
| Rahmengröße (cm) | 47/XS | 50/S | 53/M | 56/L | 59/XL |
| Sitzrohr (mm) | 470 | 500 | 530 | 560 | 590 |
| Oberrohr (mm) | 515 | 537 | 555 | 577 | 600 |
| Kettenstrebe (mm) | 420 | 420 | 420 | 420 | 420 |
| Steuerrohr (mm) | 120 | 130 | 150 | 165 | 180 |
| Winkel des Steuerrohrs (°) | 72.3 | 72.5 | 72.8 | 73 | 73.6 |
| Sitzrohrwinkel (°) | 75.5 | 74.5 | 73.5 | 73 | 72.8 |
| Radstand (mm) | – | – | – | – | – |
| Stapel (mm) | 522 | 532 | 552 | 568 | 584 |
| Reichweite (mm) | 380 | 389 | 391 | 403 | 419 |
