What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don’t worry, you’ll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Wir bitten um Verständnis, dass einige Teile und Komponenten eventuellen kurzfristigen Änderungen des Herstellers ausgesetzt sind aufgrund des Materialengpasses. |

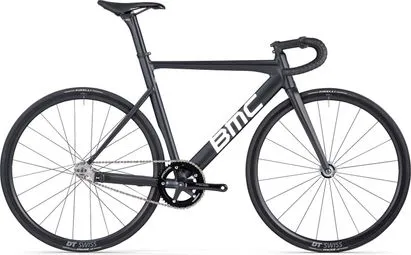

Es gibt viele Gründe, die das BMC Trackmachine AL One zu einem vollwertigen Aluminium-Bahnrad machen. Robust genug, um den täglichen Trainingseinheiten standzuhalten, raffiniert genug für den Wettkampf – es wurde auf den Brettern geboren. Sein hochwertiger Aluminiumrahmen verfügt über das Aero Vmax-Design, und die Carbongabel ist mit der SubA Aero Technologie ausgestattet. Es ist mit einer Airfoil Carbon-Sattelstütze, einem Aluminium-Cockpit, einem Miche Pista-Antrieb und einem DT Swiss-Laufradsatz ausgestattet. Fügen Sie ein Paar Pedale hinzu; Sie sind dabei, eine süchtig machende Begeisterung zu erleben.
Die + Produkte:
- Die Track-Reihe hat alles, was Sie brauchen, um an der Spitze zu landen.
- Hochwertiger Aluminiumrahmen mit Aero Vmax-Design.
- Miche Pista Antrieb.
Details:
| Rahmen | Aluminium: Trackmachine AL Premium Aluminium with Vmax Aero Design, 120 mm Steckachse, Reifenfreiheit: 23 mm (Measured Width) |
| Gabel | Carbon: Trackmachine Carbon, subA Aero Technology, 100 mm axle, 43 mm Offset |
| Ritzel | Miche Pista, Steel, 15 Zähne |
| Kette | Miche Pista 1/8″ |
| Tretlager | Miche Advanced Pista, 48 Zähne |
| Tretlagergehäuse | BSA 68 mm |
| Laufräder | DTSwiss T1800 Classic, 32 mm Profil, DTSwiss 370 Naben |
| Reifen | Pirelli P ZERO Road, 700×24 mm |
| Lenker | BMC RAB 02, Ergo Top Shape, Compact Bend, Drop 125, Reach 70 |
| Vorbau | BMC RSM 01 |
| Sattel | Velo |
| Sattelstütze | Trackmachine Carbon Airfoil Seatpost |
| Gewicht | 7.4 kg |
| Maximales Gewicht | 110 kg: Das maximale Systemgewicht umfasst das Fahrrad, den Fahrer und die Ausrüstung |
| Farben | Schwarz / Weiß |
Geometrien:
| Rahmengröße | S | M | L |
| Sitzrohr (mm) | 520 | 550 | 585 |
| Oberrohr (mm) | 540 | 558 | 580 |
| Lenkhülse (mm) | 110 | 138 | 178 |
| Länge der Basis (mm) | 390 – 420 | 390 – 420 | 390 – 420 |
| Lenkwinkel (°) | 73 | 73 | 73 |
| Winkel Sattelrohr (°) | 73.5 | 73.5 | 73.5 |
| Radstand (mm) | 956 | 975 | 999 |
| Stack (mm) | 490 | 525 | 563 |
| Reach (mm) | 395 | 402 | 413 |
| Kleiderbügel (mm) | 400 | 400 | 420 |
| Abstand Gabel (mm) | 43 | 43 | 43 |
| Kurbel (mm) | 165 | 170 | 170 |
WEITERE INFOS
Produktdetails
| Geschlecht | Herren Damen |
| Laufradgröße | 700 mm |
| Gruppe | Fixie |
