What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don’t worry, you’ll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Wir bitten um Verständnis, dass einige Teile und Komponenten eventuellen kurzfristigen Änderungen des Herstellers ausgesetzt sind aufgrund des Materialengpasses. |
Produkt mit einigen optischen Mängeln aufgrund der Lagerung

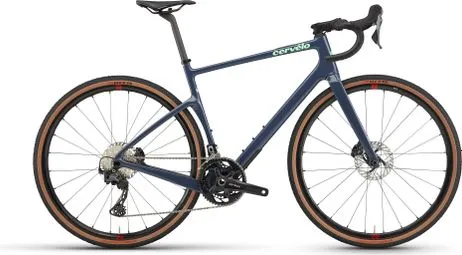

Wir habendas Áspero für pure, kompromisslose Geschwindigkeit entwickelt, bereit, Ziellinien, KOMs, PRs und FKTs zu überwinden. Ein Fahrrad ohne Grenzen, das sich an Fahrer richtet, die diese Grenzen verschieben wollen. Ein steifes Fahrrad – ähnlich wie klassische Rennräder –, das eine Leistung bietet, die einem Offroad-Rennrad würdig ist. Wir halten das für absolut logisch. Das war übrigens unser Ziel, als wir unsere bestehenden Rahmen mit breiteren Reifen ausstatteten und andere Gabeln montierten, um vorne einen 40-mm-Reifen aufziehen zu können.
Zwei-Positionen-Einstellung: „Trail“ – Die Reaktion des Vorderrads auf die Kraft des Fahrers ist der entscheidende Faktor für das Handling bei hohen Geschwindigkeiten. Die Möglichkeit, den Nachlauf mit dem Zwei-Positionen-„Trail Mixer“ einzustellen, um die extreme Vielfalt an Reifengrößen auszugleichen, garantiert ein gleichmäßiges Fahrgefühl.
Ausgewogenes Handling: Steifigkeit und Wendigkeit sorgen gemeinsam dafür, dass das Fahrrad einer vorhersehbaren Spur folgt und im Notfall sofort auf Pedal- und Bremsbefehle reagiert.
Produktvorteile:
- Schlanker Carbonrahmen.
- Shimano GRX RX820 2×12-Gang-Antrieb.
- Hydraulische Scheibenbremsen Shimano GRX RX820.
Details:
| Rahmen | Carbon: Cervelo All-Carbon, Aspéro |
| Gabel | Carbon: Cervelo All-Carbon, Tapered Aspero Fork |
| Schalthebel | Shimano GRX, RX820, 2×12-fach |
| Umwerfer | Shimano GRX, RX820, 2×12-Gang |
| Schaltwerk | Shimano GRX, RX820, 12-fach |
| Kassette | Shimano HG710, 11-36 Zähne |
| Kette | Shimano M8100 |
| Kurbelgarnitur | Shimano GRX 820, 48-31 Zähne |
| Tretlager | FSA, T47 BBright |
| Bremsen | Shimano GRX RX610, Shimano CL800 Scheibenbremsen, CenterLock, 160/160 mm |
| Laufräder | Fulcrum Rapid Red 300, 12×100 (V)/142 (H), 24H, 24 mm IW, HG-Freilauf, CenterLock, tubeless-kompatibel |
| Reifen | WTB Vulpine TCS Light Fast Rolling Dual DNA 60 tpi 700x40c |
| Lenker | Cervélo AB09 Carbon, 31,8 mm Klemmung, 16° Auslauf |
| Vorbau | Cervélo ST36 Aluminium |
| Steuersatz | FSA IS2 1-1/4 x 1-1/2 |
| Sattel | Prologo Dimension NDR T4.0 |
| Sattelstütze | Cervélo SP19 27,2 Carbon |
| Zubehör | Smartpak 400A Oberrohr-Aufbewahrungstasche |
| Gesamtgewicht | — |
| Farbe | Woodsmoke |
Geometrien:
| Rahmengröße (cm) | 48 | 51 | 54 | 56 | 58 | 61 |
| Oberrohr (mm) | 512 | 532 | 553 | 575 | 591 | 608 |
| Länge der Basis (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
| Lenkkopf (mm) | 83 | 107 | 133 | 159 | 188 | 214 |
| Lenkwinkel | 71° | 71,5° | 72° | 72° | 72° | 72° |
| Sattelrohrwinkel | 74,5° | 74° | 73,5° | 73° | 73° | 73° |
| Radstand (mm) | 990 | 1000 | 1010 | 1027 | 1046 | 1063 |
| Stapelhöhe (mm) | 505 | 530 | 555 | 580 | 605 | 630 |
| Reichweite (mm) | 370 | 379 | 388 | 397 | 406 | 415 |
