What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don’t worry, you’ll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Wir bitten um Verständnis, dass einige Teile und Komponenten eventuellen kurzfristigen Änderungen des Herstellers ausgesetzt sind aufgrund des Materialengpasses. |
Setzen Sie Ihre Wochenendausflüge mit dem Fahrrad fort: Freunde, Lachen, freundschaftliche Herausforderungen und Kaffee am Vormittag…

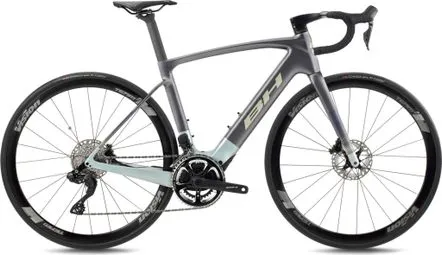

Die Routen werden mit dem neuen iRS1 verlängert, der jetzt den neuen BHZ-Motor von Seg Automotive und eine Batteriereichweite von bis zu 810 Wh integriert, sodass Sie wieder Pässe erklimmen oder diese anspruchsvolle Route beenden können.
Produktvorteile:
- Rahmen und Gabel aus Carbon.
- Shimano 105 2×12-Gang-Schaltung.
- Hydraulische Scheibenbremsen Shimano 105.
Details:
| Rahmen | Carbon: Road Carbon 28″ interne Kabelführung |
| Gabel | Carbon: BH iRS1 Carbon ACR |
| Motor | BHZ by SEG, 65 Nm |
| Akku | 630 Wh (nicht austauschbar) |
| Display | Bh Core Display + iButton |
| Schalthebel | Shimano 105 Di2, 2×12 Gänge |
| Umwerfer | Shimano 105 Di2 |
| Schaltwerk | Shimano 105 Di2, 12 Gänge |
| Kassette | Shimano 105 11-34 Zähne |
| Kette | Shimano 105 |
| Kurbelsatz | FSA 50-34 Zähne |
| Bremsen | Shimano 105 hydraulisch, 160/160 mm |
| Räder | FSA Team 35 TR, HG-Freilauf |
| Reifen | Hutchinson Blackbird, 700 x 28 |
| Lenker | FSA SLK Compact Carbon |
| Vorbau | FSA NS ACR |
| Steuersatz | FSA ACR |
| Sattel | Prologo Dimension Stn |
| Sattelstütze | BH Aero |
| Gewicht | — |
| Referenz | EC156 |
Geometrien:
| Rahmengröße | S | M | L | XL |
| Sattelrohr (mm) | 448 | 473 | 500 | 536 |
| Oberrohr (mm) | 539 | 562 | 580 | 603 |
| Steuerrohr (mm) | 145 | 160 | 175 | 200 |
| Grundlänge (mm) | 420 | 420 | 420 | 420 |
| Lenkwinkel (°) | 71,0 | 73,0 | 73,0 | 73,0 |
| Sattelrohrwinkel (°) | 74,0 | 73,0 | 73,0 | 73,0 |
| Stack (mm) | 537 | 560 | 576 | 593 |
| Reichweite (mm) | 381 | 391 | 401 | 411 |
| Kurbelarme (mm) | 170 | 172,5 | 175 | 175 |
| Bogen (mm) | 400 | 420 | 440 | 440 |
| Ausladung (mm) | 80 | 90 | 100 | 110 |
