Beschreibung
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don’t worry, you’ll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Wir bitten um Verständnis, dass einige Teile und Komponenten eventuellen kurzfristigen Änderungen des Herstellers ausgesetzt sind aufgrund des Materialengpasses. |

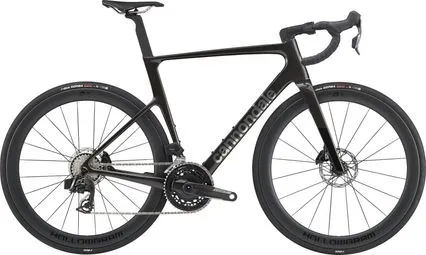

Das brandneue Cannondale SuperSix EVO zerstört alle Erwartungen. Es ist so leicht, so schnell und so aerodynamisch, dass es sich jeder Logik widersetzt. Es ist eine Maschine, die entwickelt wurde, um Sie überall schneller zu machen. Die Geschwindigkeit hat sich weiterentwickelt.
Die + Produkte:
- Leichter, aerodynamischer SuperSix EVO Carbon-Rahmen – die ideale Kombination aus Geschwindigkeit, Wendigkeit und Komfort.
- Sram Force AXS-Schaltung, 2×12 Gänge.
- Hydraulische Scheibenbremsen Sram Force, 160/160 mm.
- HollowGram R-S 50 Carbon-Laufräder – Leichter und schneller Wettkampf-Laufradsatz mit 50-mm-Profil.
- Vision Trimax Carbon Aero Lenker und Cannondale C1 Conceal Vorbau – ergonomisches Cockpit mit verdeckten Kabeln.
Details :
| Rahmen | Carbon: SuperSix EVO Carbon, integrierte Kabelführung w/ Switchplate, 12×142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible |
| Gabel | Carbon: SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8″ to 1-1/4″ Delta steerer |
| Schalthebel | Sram Force AXS, 2×12 Gänge |
| Umwerfer vorne | Sram Force AXS |
| Schaltwerk hinten | Sram Force AXS, 12 Gänge |
| Kassette | Sram XG-1270, 10-33 dts, 12 Gänge |
| Kette | Sram Force, 12-Gang |
| Tretlager | Sram Force, 48-35 dts |
| Tretlagergehäuse | Sram DUB BSA |
| Bremsen | Sram Force, 160/160 mm Paceline Rotoren |
| Laufräder | HollowGram R-S 50, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready, Formula Grand Forza Speichen, Double Butted, Straight-Pull, HollowGram Naben, Sealed Bearing w/ DTSwiss 350 internal, 12×100/12×142 mm |
| Reifen | Vittoria Rubino Pro Bright Black, 700x25c, reflective strip |
| Lenker | Vision Trimax Carbon Aero |
| Lenkerband | Cannondale Bar Tape, 3.5 mm |
| Vorbau | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Steuersatz | Integrated, 1-1/8″ – 1-1/4″ |
| Sattel | Prologo Dimension TiRox NDR, Titanium Rails |
| Sattelstütze | Cannondale C1 Aero 40 Carbon |
| Radsensor | Cannondale Wheel Sensor |
| Farben | Raw |
Geometrien :
| Rahmengröße (cm) | 48 | 51 | 54 | 56 | 58 | 61 |
| Sattelrohr (mm) | 438 | 477 | 515 | 534 | 567 | 600 |
| Oberes Rohr (mm) | 520 | 528 | 546 | 562 | 578 | 603 |
| Lenkhülse (mm) | 114 | 130 | 154 | 165 | 188 | 220 |
| Länge der Basis (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Lenkwinkel (°) | 71.2 | 71.2 | 71.2 | 73 | 73 | 73 |
| Winkel Sattelrohr (°) | 74.3 | 74.3 | 73.7 | 73.3 | 72.9 | 72.3 |
| Radstand (mm) | 987 | 996 | 1010 | 994 | 1007 | 1024 |
| Stack (mm) | 520 | 535 | 555 | 575 | 595 | 625 |
| Reichweite (mm) | 374 | 378 | 384 | 389 | 395 | 403 |
| Abstand der Gabel (mm) | 55 | 55 | 55 | 45 | 45 | 45 |
| Abstand der Sattelstütze (mm) | 0 | 20 | 20 | 20 | 20 | 20 |
