Beschreibung
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don’t worry, you’ll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Wir bitten um Verständnis, dass einige Teile und Komponenten eventuellen kurzfristigen Änderungen des Herstellers ausgesetzt sind aufgrund des Materialengpasses. |

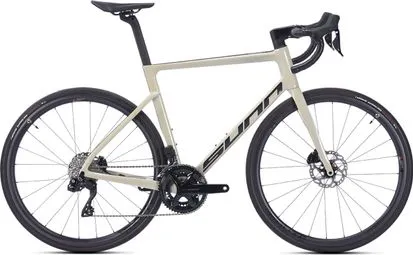

Die DNA vonSunn auf die Straße übertragen. Das Asphalt ist ein verspieltes Rad, das immer Spaß macht. Es ist ein lebendiges Rad, das leicht zu handhaben ist, ein Tänzer, der seine Elastizität nutzt, um den Fahrer mühelos von einem Pedal zum nächsten zu bringen.
Das Asphalt bietet mehr Komfort dank seines schrägen Rahmens (nur 49 cm für das Sitzrohr bei Größe M), damit sich die Sattelstütze über eine längere Strecke verformen kann.
Die 32-mm-Reifen und die breiten 21-mm-Felgen filtern die Vibrationen und sorgen für mehr Komfort. Legen Sie die Kilometer zurück, egal wie hoch die Steigung ist.
Hauptmerkmale:
- Ultimative Leistung durch funktionelle Integration.
- Shimano 105 Di2 2×12-Gang-Antriebssystem.
- Shimano 105 hydraulische Scheibenbremsen, 160/140 mm.
Eigenschaften:
| Rahmen | Carbon-Monoblock-Fräse mit integrierter Steckachse |
| Gabel | Carbon integrierte Bremsleitung |
| Schaltungen | Shimano 105 Di2, 2×12-fach |
| Umwerfer | Shimano 105 Di2 |
| Schaltwerk | Shimano 105 Di2, 12-fach |
| Kassette | Shimano 105 CS-R7100-12, 11-34T |
| Kette | Shimano 105 |
| Kurbelgarnitur | Shimano 105 FC-R7100, 50-34Z |
| Tretlager | — |
| Bremsen | Shimano 105, Hydr. Scheibenbremse (160/140) Shimano SM-RT70 Bremsscheiben |
| Laufradsatz | Brute Carbon R32 Tubeless Ready |
| Bereifung | Vittoria zaffiro pro 700x32c schwarz |
| Lenker | Zipp Service-Race |
| Vorbau | Brute Aluminium |
| Sattel | Fizik tempo argo r5 |
| Sattelstütze | Asphalt Carbon |
| Gewicht | 8.1 kg |
Geometrien:
| Rahmengröße | S | M | L | XL | XXL |
| Sitzrohr (mm) | 455 | 496 | 526 | 539 | 565 |
| Oberrohr (mm) | 512 | 551 | 564 | 577 | 601 |
| Kettenstrebe (mm) | 410 | 410 | 410 | 410 | 410 |
| Länge des Steuerrohrs (mm) | 142 | 160 | 172 | 185 | 210 |
| Steuerrohrwinkel (°) | 71 | 73 | 73 | 73,5 | 73,5 |
| Sitzrohrwinkel (°) | 75 | 74 | 74 | 73,5 | 73,5 |
| Radstand (mm) | – | – | – | – | – |
| Stapel (mm) | 538 | 565 | 577 | 590 | 614 |
| Reichweite (mm) | 368 | 389 | 399 | 402 | 419 |
| Länge des Stiels (mm) | 90 | 90 | 100 | 100 | 110 |
| Länge des Lenkers (mm) | 400 | 400 | 420 | 420 | 440 |
| Länge der Kurbeln (mm) | 170 | 172,5 | 172,5 | 175 | 175 |
