Beschreibung
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don’t worry, you’ll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Wir bitten um Verständnis, dass einige Teile und Komponenten eventuellen kurzfristigen Änderungen des Herstellers ausgesetzt sind aufgrund des Materialengpasses. |

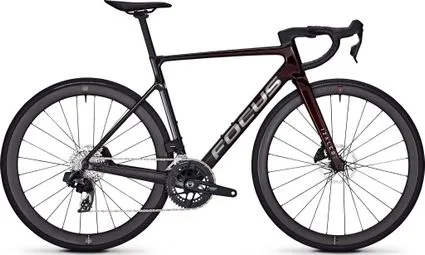

Das Focus Izalco Max ist ein Rennrad, das für ein schnelles und effizientes Fahrerlebnis entwickelt wurde.
Dieses Fahrrad richtet sich an alle, die bei der Geschwindigkeit keine Kompromisse eingehen, und bietet eine perfekte Kombination aus Aerodynamik, Steifigkeit und geringem Gewicht.
Es ist mit einem aerodynamischen Rahmen mit NACA-Formen ausgestattet, der den Luftwiderstand verringert und das Gewicht reduziert.
Das Fahrrad ist in sieben Größen und sechs Vorbaulängen erhältlich, was eine individuelle Anpassung an die Bedürfnisse des Fahrers ermöglicht.
Produktvorteile:
- Aerodynamischer Carbonrahmen (865 g – Größe M).
- Sram Rival AXS-Antrieb, 2×12 Gänge.
- Reserve 40|44 Carbonlaufräder.
Details:
| Rahmen | Carbon-Technologie, Scheibenbremse, 142×12 mm Steckachse, Flat-Mount 160/140 mm |
| Gabel | Carbon |
| Schalthebel | Sram Rival AXS E1, 2×12-Gang |
| Umwerfer | Sram Rival AXS E1 |
| Schaltwerk | Sram Rival AXS E1, 12-fach |
| Kassette | Sram XG-1250, 10–36 Zähne |
| Kette | Sram Rival E1 |
| Kurbelgarnitur | Sram Rival E1, 48-35 Zähne |
| Tretlager | — |
| Bremsen | Sram Rival E1, hydraulisch, Scheiben 160/140 mm |
| Laufräder | Reserve 44|40, Carbon, Profil 44/40 mm, 25-622, 12×100/12×142 mm, XDR-Freilauf |
| Reifen | Vittoria Corsa N.EXT wide, tubeless ready, 29-622 |
| Lenker | Focus Road Bar, Aluminium, 74 mm, 116 mm, 4° |
| Vorbau | Focus C.I.S. 2.0 integriert, -8°, mit Garmin-/Wahoo-Halterung |
| Steuersatz | Acros IS 52/ IS52 (ICR), FOCUS integriert C.I.S. |
| Sattel | fi’zi:k Vento Antares R5 |
| Sattelstütze | Focus Aero Carbon, D-Shape |
| Gewicht | 8,1 kg (Größe M) |
| Maximales Gewicht | Dieses Fahrrad hat eine maximale Gesamtgewichtsgrenze (einschließlich des Gewichts des Fahrrads, des Fahrers und des Gepäcks) von 110 kg. |
Geometrien:
| Rahmengröße (cm) | XXS | XS | S | M | L | XL | XXL |
| Sattelrohr (mm) | 455 | 475 | 495 | 515 | 535 | 555 | 585 |
| Oberrohr (mm) | 505 | 517 | 530 | 543 | 568 | 582 | 607 |
| Lenkungsbuchse (mm) | 90 | 100 | 115 | 135 | 155 | 175 | 195 |
| Grundlänge (mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Lenkwinkel (°) | 70,0 | 71,0 | 72,0 | 72,5 | 72,5 | 73,0 | 73,0 |
| Sattelrohrwinkel (°) | 75,0 | 74,5 | 74,0 | 73,5 | 73,5 | 73,0 | 73,0 |
| Radstand (mm) | 975 | 976 | 975 | 979 | 1004 | 1008 | 1033 |
| Stapelhöhe (mm) | 500 | 513 | 531 | 552 | 571 | 592 | 611 |
| Reichweite (mm) | 370 | 375 | 378 | 380 | 399 | 401 | 420 |
| Sattelstützenversatz (mm) | 0 | 0 | 0 | 0 | 0 | 15 | 15 |
| Lenkerbreite (mm) | 380 | 380 | 380 | 400 | 400 | 420 | 420 |
| Länge des Auslegers (mm) | 80 | 90 | 100 | 110 | 110 | 120 | 120 |
| Länge der Kurbeln (mm) | 165 | 165 | 170 | 170 | 170 | 172,5 | 172,5 |
