What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don’t worry, you’ll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Wir bitten um Verständnis, dass einige Teile und Komponenten eventuellen kurzfristigen Änderungen des Herstellers ausgesetzt sind aufgrund des Materialengpasses. |

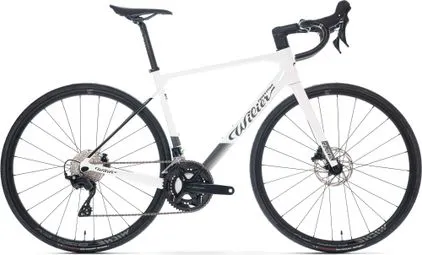

Das Wilier Garda Rennrad ist das perfekte Produkt für alle, die ein modernes Rad mit stressfreiem Fahrverhalten suchen. Mit dem Garda haben wir das Carbon-Rennrad neu gestaltet und modern interpretiert, mit im Rahmen verlegten Kabeln und genügend Spielraum für größere Reifen. Ein völlig neues Projekt, das den evolutionären Kreis der Rennradprodukte mit einer vollständigen Kabelintegration schließt. Garda ist in 6 Größen erhältlich, mit Scheiben- oder traditionellen Felgenbremsen.
Garda nutzt die besten Lösungen, die für Carbon-Rennräder der Spitzenklasse entwickelt wurden: Das spezielle Design des Stemma S-Lenkervorbaus integriert die Kabel in den Rahmen und sorgt so für eine vollständige Integration und einen eleganten Look.
Die wichtigsten Merkmale:
- Durch die Kombination von Komfort und technologischen Lösungen entstand das Garda, ein Carbon-Rennrad, mit dem Sie stundenlang ohne Stress in die Pedale treten können.
- Monocoque-Rahmen und -Gabel aus Carbon.
- Shimano 105 2×12-Gang-Antriebssystem.
- Hydraulische Scheibenbremsen Shimano 105 R7170, 160/140 mm.
Eigenschaften:
| Rahmen | Carbon: Garda Disc – Carbon Monocoque NH-Mod, Steckachse 12×142 mm, Reifenbreite maximal: 32 mm |
| Gabel | Carbon: Garda Disc – Carbon Monocoque, Steckachse 12×100 mm |
| Schaltungen | Shimano 105 ST-R7120, 2×12-fach |
| Umwerfer | Shimano 105 FD-R7100, anlötbar |
| Schaltwerk | Shimano 105 RD-R7100, 12-fach |
| Kassette | Shimano 105 CS-R7100-12, 11-34T |
| Kette | Shimano CN-M7100 |
| Kurbelgarnitur | Shimano 105 FC-R7100, Hollowtech II, 50/34Z |
| Tretlager | Miche Press-Fit 86,5×41 mm |
| Bremsen | Shimano 105 BR-R7170, Hydr. Scheibenbremse, Shimano SM-RT70 Bremsscheiben (160/140) |
| Laufradsatz | Miche Reflex DX, Scheibe, 24/24 Speichen, 12×100/12×142 mm, Tubeless Ready, 622-19C, 700C |
| Bereifung | Vittoria Zaffiro Pro, Graphene 2.0, 28-622, 700x28C |
| Lenker | Wilier Barra S Alu |
| Vorbau | Ritchey Stemma S2 Alu |
| Steuersatz | Custom Superslim 1-1/4″ Oberer BR, FSA MR137 1-1/4″ Unterer BR |
| Sattel | Prologo Dimension |
| Sattelstütze | Legierung, 27,2 mm |
| Gewicht | — kg (Rahmen: 1150 g / Gabel: 370 g) |
| Farbe | G40 – Weiß, Schwarz – Glänzend |
| Referenz | E50652X |
Geometrien:
| Rahmengröße | XS | S | M | L | XL | XXL |
| Sitzrohr (mm) | 440 | 465 | 490 | 520 | 550 | 580 |
| Oberrohr (mm) | 512 | 522 | 541 | 551 | 572 | 582 |
| Länge des Steuerrohrs (mm) | 112 | 125 | 144 | 161 | 179 | 197 |
| Kettenstreben (mm) | 409 | 409 | 411 | 411 | 414 | 414 |
| Winkel des Steuerrohrs (°) | 70.5 | 71.7 | 72.15 | 72.65 | 72.8 | 73.1 |
| Winkel des Sitzrohrs (°) | 75.2 | 75 | 74 | 74 | 73 | 73 |
| Radstand (mm) | 981 | 981 | 990 | 996 | 1009 | 1016 |
| Stapel (mm) | 515 | 531 | 548 | 566 | 584 | 602 |
| Reichweite (mm) | 373 | 378 | 383 | 388 | 393 | 398 |
